TECHNICAL CHARACTERISTICCS

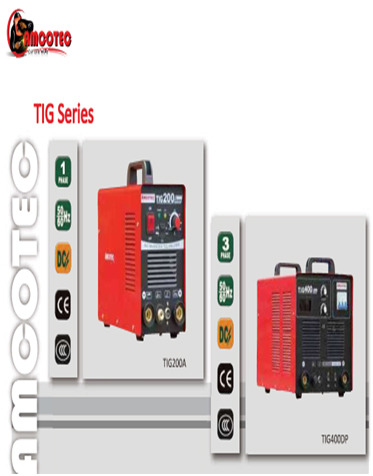

| Input Volage | TIG 200A | TIG40 TIG400DP | |
| Input Volage (V) | AC230±15%( Singer Phase ) | AC415±15%(3phase) | |
| Frequency (Hz) | 50/60 | 50/60 | |
| Rated input curent (A) | 28 | 27.6/20 | |
| No-Load Voltage (V) | 41 | 68 | |
| Output current range (A) | 10-200 | 20-400 | |
| Output curent range(A) | 18 | 36/26 | |
| Duty cycle(%) | 60 | 60 | |
| Efficiency(%) | 80 | 85 | |
| Wire Diameter | 0.8/1./1.2 | 1./1.2/1.6 | |
| Power Factor | 0.73 | 0.93 | |
| Wire-Feeding Speed(m/min) | 3-15 | 3-15 | |
| Insulamon Grade | F | F | |
| Post-flows | 1-10 | 1-10 | |
| Housing Protection Grade | IP21 | IP21 | |
| Net Weigh(Kg) | 9 | 29 | |
| Dimention | 375x155x232 | 515x263x440 | |
